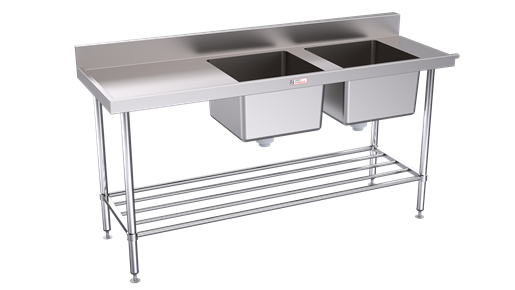

Double Bowl Dishwash Inlet

09-6-1800-DB-L

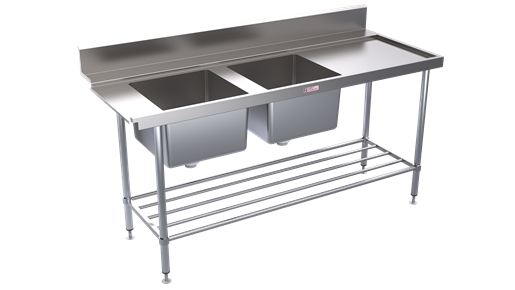

Double Bowl Dishwash Inlet

09-7-1800-DB-R

  • Suits leading brand of popular commercial dishwashers
  • Bench available in 600 and 700mm depth
  • 304 grade, 1.2mm thick stainless steel top with large single channel stainless steel top hat stiffening
  • 38mm diameter stainless steel tube legs, 1.2mm thick
  • Adjustable stainless steel feet fitted as standard
  • 19mm diameter stainless steel tube under-shelf, 1.2mm thick
  • Available as left or right entry
  • Bowl size 450mm x 450mm x 300mm deep, (60 litres) 1.2mm thick, fully welded and polished (bowl positioned 175mm in from dishwasher leading edge)
  • Pre-punched waste hole to suit 90mm waste, supplied with Watermark and Watercorp approved commercial grade basket arrestor sink waste
  • Supplied flat packed ready for self-assembly
  • 100mm splashback (600 series) or 150mm splashback with beveled edge (700 series) with unique vermin proofing system for added protection

For detailed drawing please click on the PDF file available for each individual unit below.

CodeDimensions mm
(length x depth x height)
Drawing
09-6-1650-DB-L1650 x 600 x 900
09-6-1650-DB-R1650 x 600 x 900
09-6-1800-DB-L1800 x 600 x 900
09-6-1800-DB-R1800 x 600 x 900
09-7-1650-DB-L1650 x 700 x 900
09-7-1650-DB-R1650 x 700 x 900
09-7-1800-DB-L1800 x 700 x 900
09-7-1800-DB-R1800 x 700 x 900
SBESPLASHBACK EXTENSION
